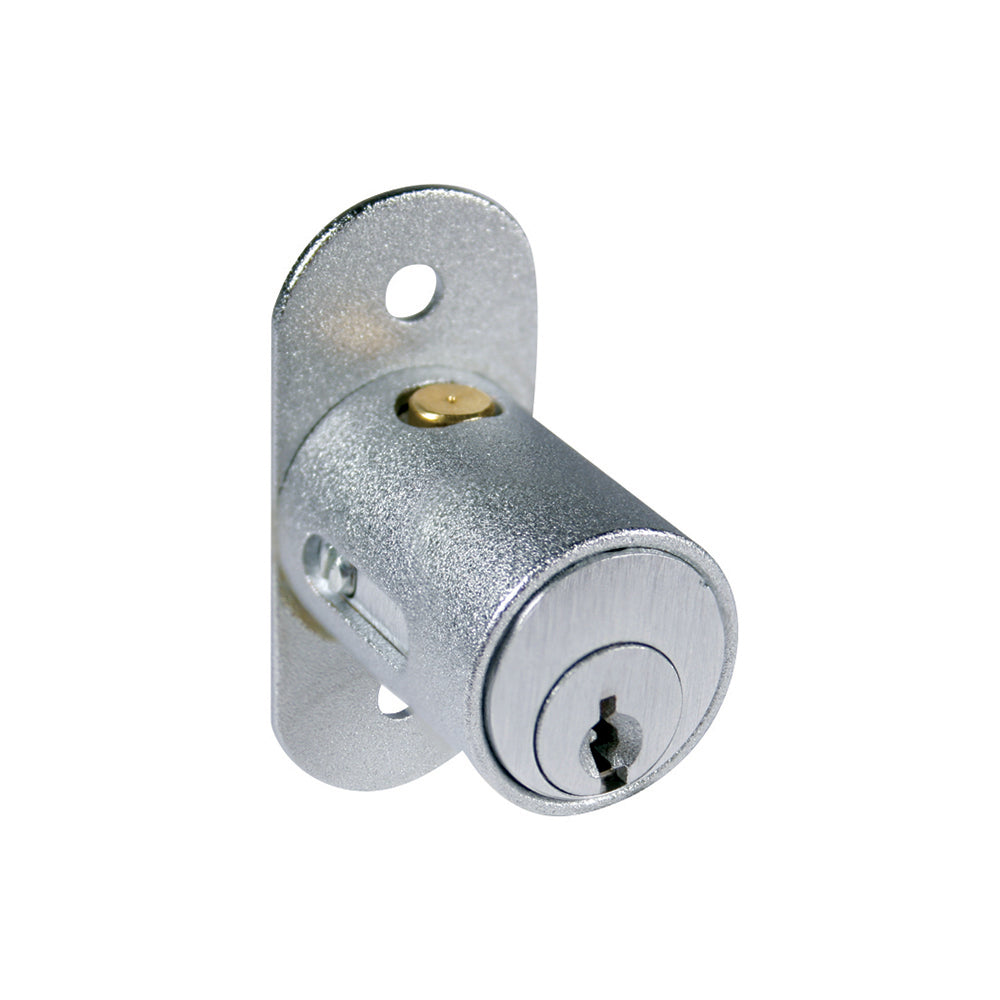

CompX National Sliding door lock, plunger style, 1-1/8″ – C8142

Application

C8142 is for wood sliding doors and require a 7/8"" diameter hole in front door for cylinder.

Operation

Key removable in both locked and unlocked positions.

Keying

Will key together with all other pin tumbler locks using D4291 key blank. See table for available keying. Master keying to GM1.

Packaging

Supplied with two keys, strike and mounting screws. If trim ring is required, order C2017 separately.

CompX National pin tumbler push lock for sliding , bypass wood cabinet doors, 7/8" diameter with 1-1/8" cylinder length. Keyed alike to 101, 103, 105, 106, 107 and 915. 100 keyed different and masterkey keyed different codes. Available in dull chrome ans satin brass finish. Not all key codes available in all finishes.
