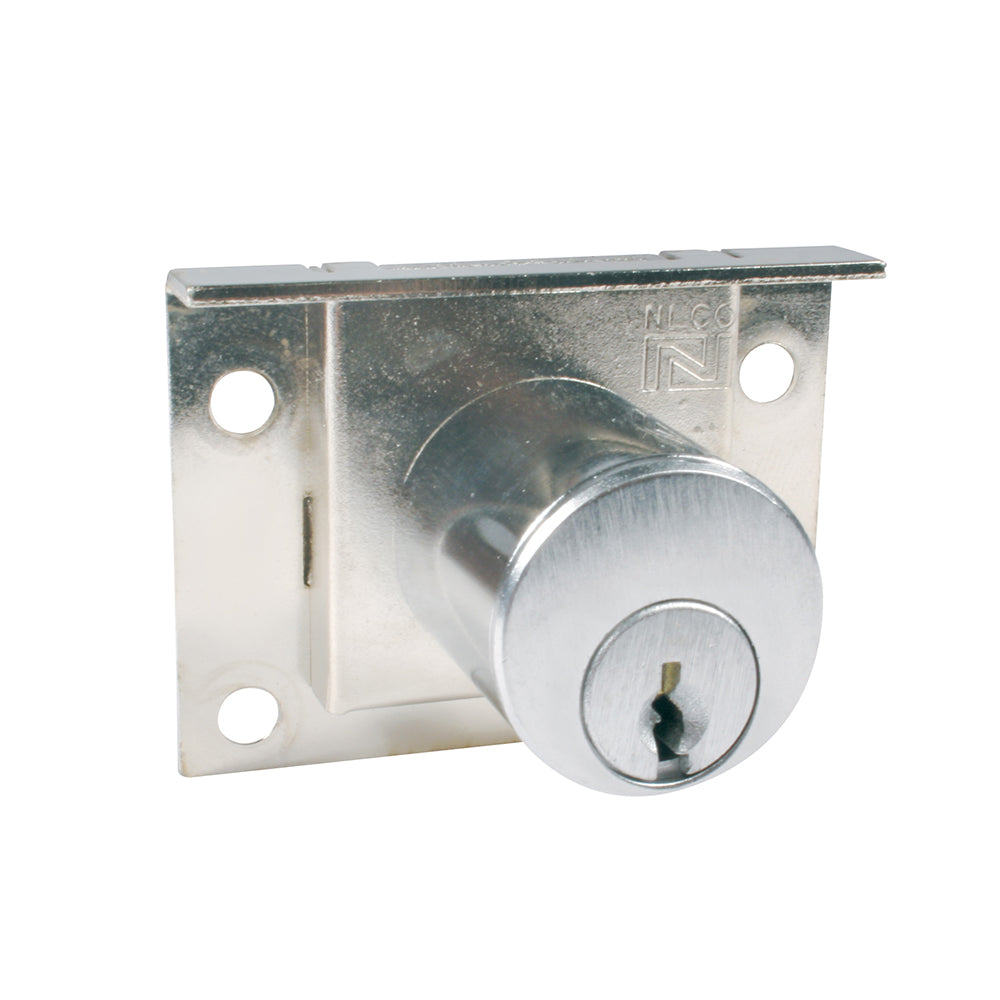

CompX National Pin tumbler half mortised drawer lock, 7/8″ – C8133 Mechanical Deadbolt, 57/64" mounting hole. Available in multiple finishes and keying options. Part number: C8133

Application

For drawers. Half mortise type requires mortise for housing and 57/64"" diameter hole for cylinder.

Operation

Key removable in both locked and unlocked positions.

Keying

Will key together with all other pin tumbler locks using D4291 key blank. See table for available keying. Master keying to GM1.

Packaging

Supplied with two keys, strike and mounting screws. If trim ring is required, order C2017 separately.

CompX National pin tumbler half mortised drawer lock with 7/8" cylinder length, Deadbolt, 57/64" mounting hole. Keyed alike to 101, 103, 107 and 915. 850 keyed different codes. Available in dull chrome satin brass. Not all key codes available in all finishes.
