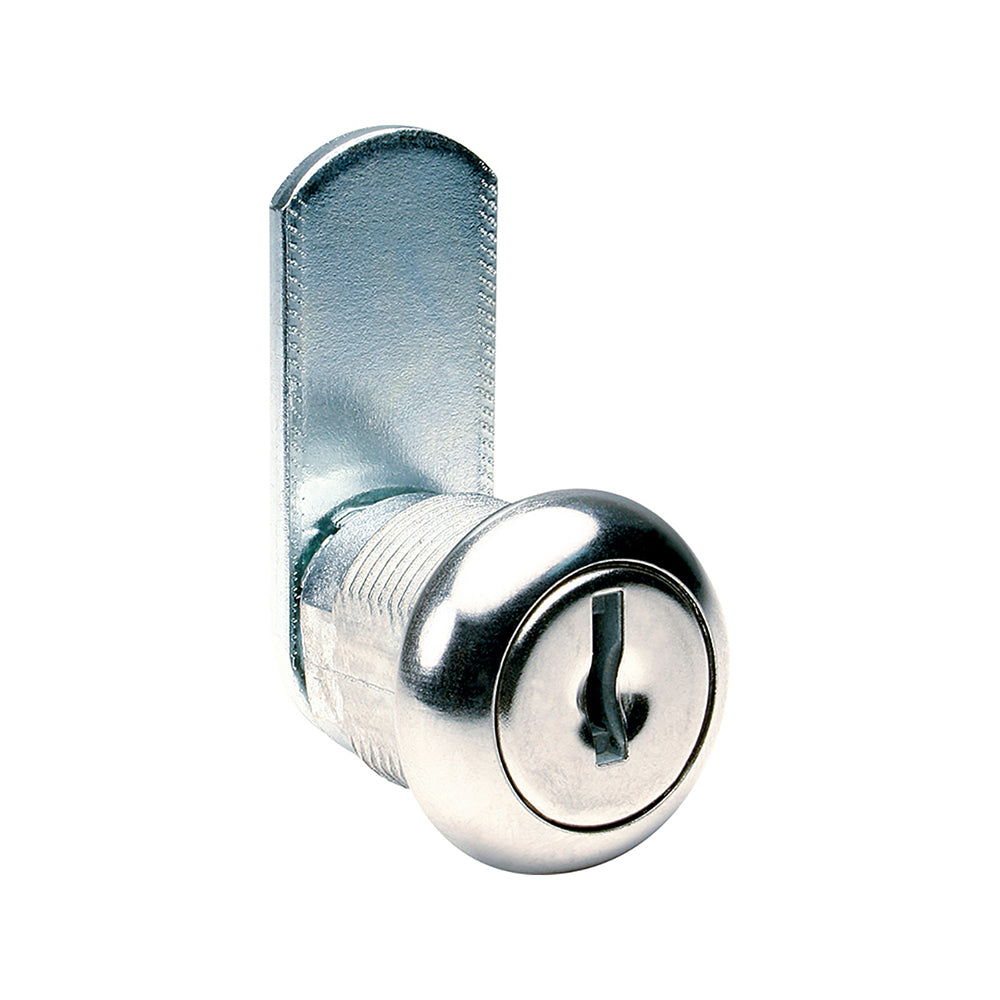

CompX -Fort Disc Tumbler Cam Locks Various Lengths 7/16" -1 3/4"

Application

For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length.

Operation

90° and 180° clockwise and counter clockwise rotation, provided with parts for six different functions.

Keying

Will key together with all other CompX Fort flat key style locks using K54G key blank.

Packaging

Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. 180 degree and 90 degree stop cam, Wonder washer and two spline fillers.
