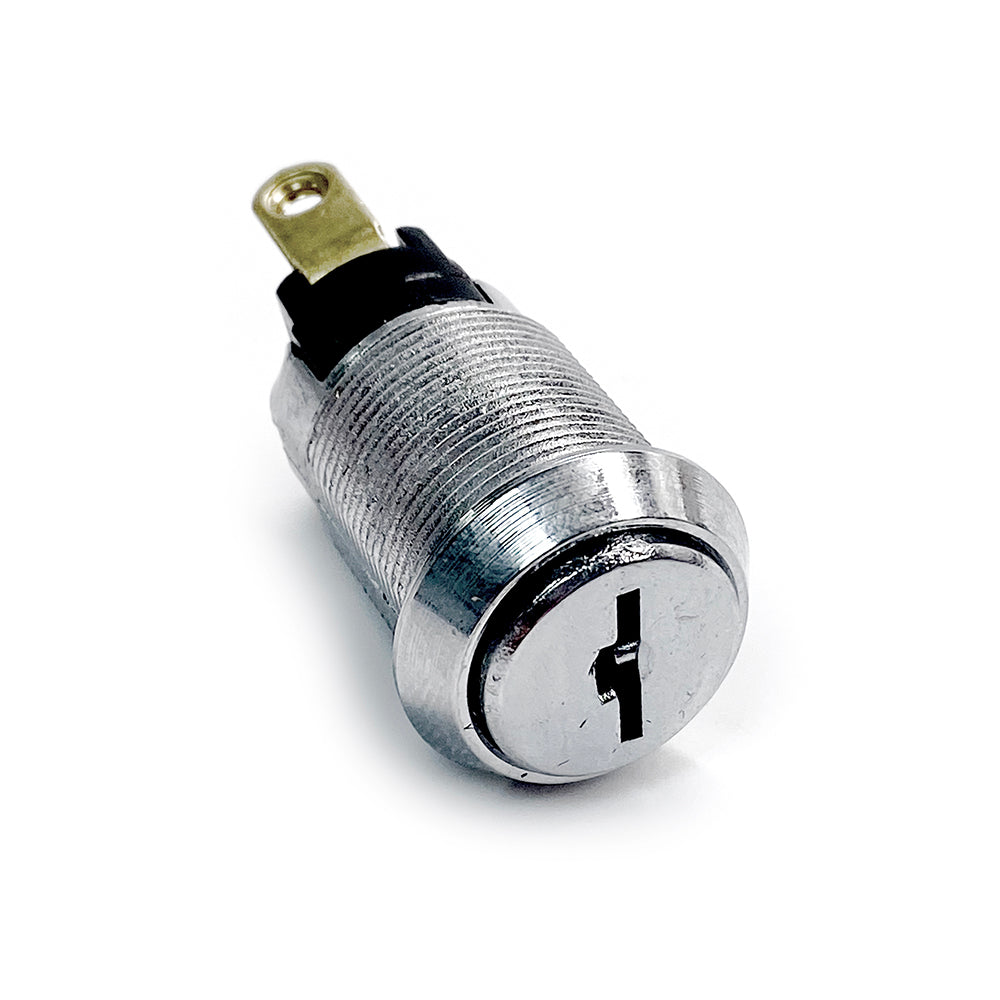

CompX Chicago Switch lock, momentary – C2174-70DC

Application

CompX Chicago double bitted switch lock is designed to integrate with a switch to control the operation of the switch. Switch locks limit use of the switch to someone with a key to the lock

Operation

Momentary contact switch locks feature spring return from closed to open position after 90° clockwise key rotation to closed position. Key pull at off only.

Keying

Will key together with all other CompX Chicago disc tumbler locks using DK-4 key blank.

Packaging

Switch lock and two keys, mounting hardware

CompX Chicago double bit, switch lock, single pole, single throw, key pull at off only. Momentary contact switch operated by manually rotating inserted key 90° clockwise from open to closed position.7 amps @ 28 VAC/VDC, electrical Life: 6,000 cycles @ Max. Load. Contact Resistance: 50 milliohms initial maximum, bright chrome finish, two keys per lock. Master keying not available. Keyed alike to 2001, 2007 and 2126, 200 keyed different codes
