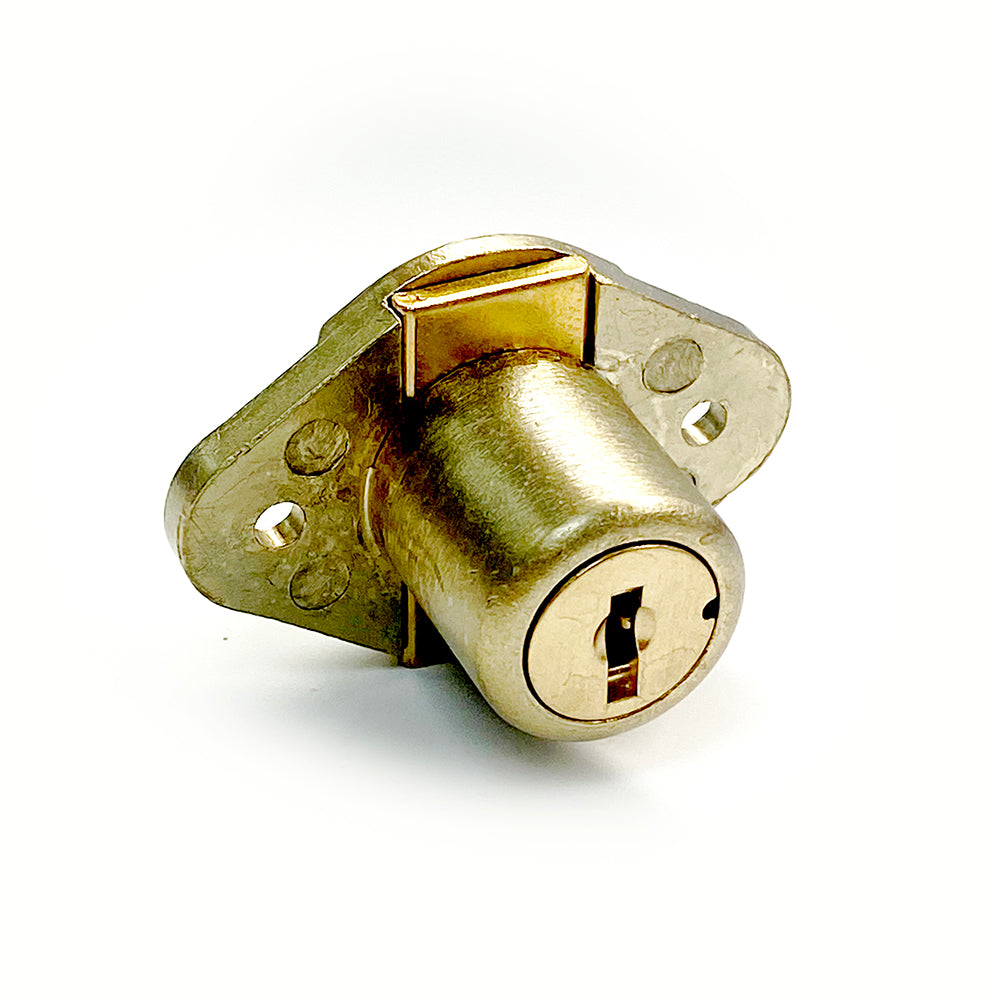

CompX Chicago Drawer lock – C1968 Mechanical
CompX Chicago Drawer lock – C1968 Mechanical
Regular price
$21.80 USD
Regular price
Sale price
$21.80 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
CompX Chicago disc tumbler drawer cabinet lock, Deadbolt with 57/64" cylinder length, brushed brass finish, various keying options
Part number: C1968
Product Overview
Application
CompX Chicago surface mounted drawer lock
Operation
180 degree key rotation, key out in both locked and unlocked positions
Keying
Will key together with all other CompX Chicago disc tumbler locks using DK-5 key blank.
Packaging
Packaged with lock, two keys
Technical Specifications
Bolt Travel: 11/32"
Cylinder Length Size: 57/64"
Keying: KA
Max Material Thickness: 7/8
Additional Details
CompX Chicago disc tumbler drawer cabinet lock, Deadbolt with 57/64" cylinder length with removable lock core feature, bolt throw 11/32", brushed brass finish, keyed alike to 1289 and 1454, 200 keyed different codes
Finishes Available
- Satin Brass - 4
-
