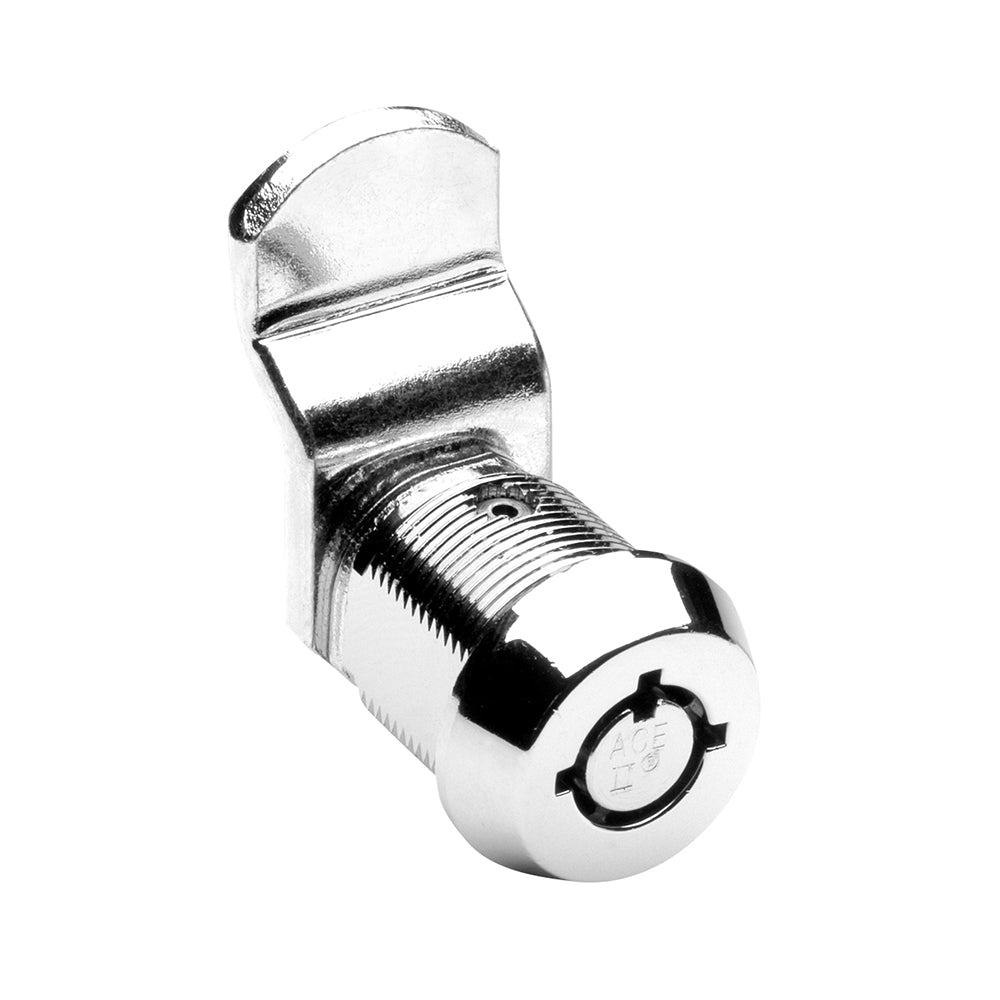

CompX Chicago ACE II Cam lock 19/32″ – C4198
CompX Chicago ACE II Cam lock 19/32″ – C4198
Regular price
$36.39 USD
Regular price
Sale price
$36.39 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Overview
Application
CompX Chicago Ace II pin tumbler tubular cam lock For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam).
Operation
90° clockwise rotation - key removal at 12 & 3 O'clock. 90° counterclockwise rotation - key removal at 12 & 9. 180° clockwise and counterclockwise rotation - key removal at 12.
Keying
Will key together with all other CompX Chicago tubular style locks using D137-CLC key blank.
Technical Specifications
Cylinder Length Size: 19/32"
Key Rotation: clockwise, counterclockwise
Keying: KA, KA
Additional Details
CompX Chicago ACE II cam lock with universal function, brass construction, 19/32" cylinder, 90 and 180 degree rotation, polished nickel finish, keyed alike to 6224, 6225, and 7302, 200 keyed different codes
